current location：Home>Products>Optics Mounts Series>Optics Mounts

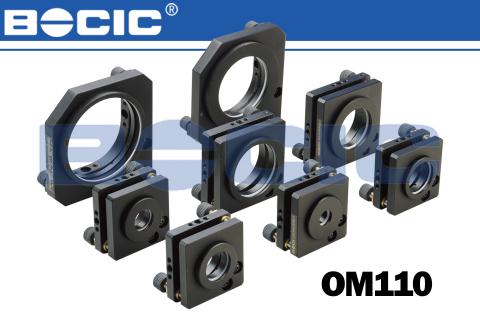

OM110 series mirror mounts

    1. Provides two dimensional tilt adjustment

    2. M6×0.25 fine thread screw adjustment

    3. Imported dish shape spring reset

    4. Barrel clamping lens

  • description
  • parameters

OM110 series mirror mounts




1. Provides two dimensional tilt adjustment

2. M6×0.25 fine thread screw adjustment

3. Imported dish shape spring reset

4. Barrel clamping lens

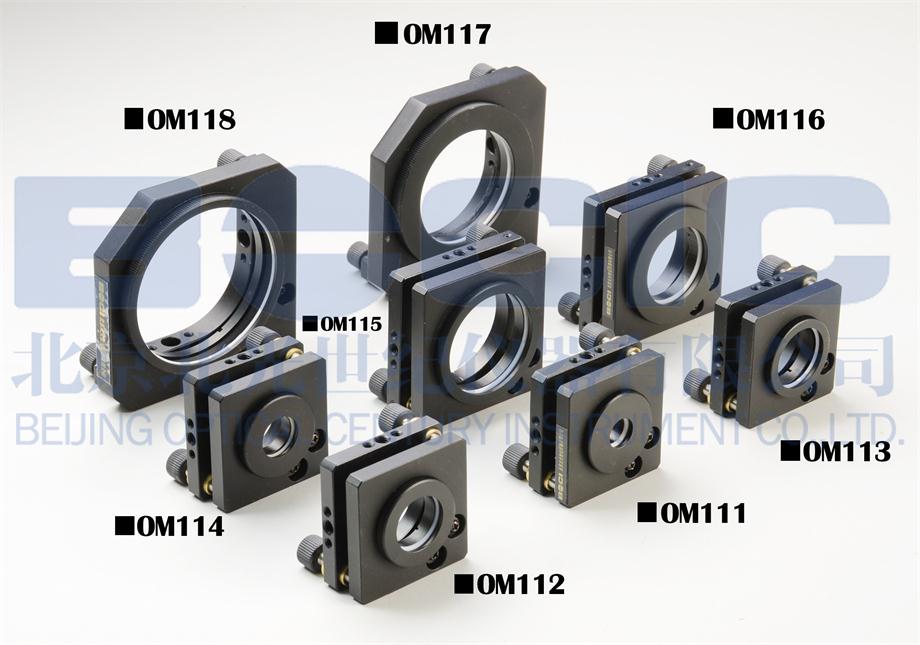

Model

OM111

OM112

OM113

OM113B

OM114

OM115

OM116

OM117

OM118

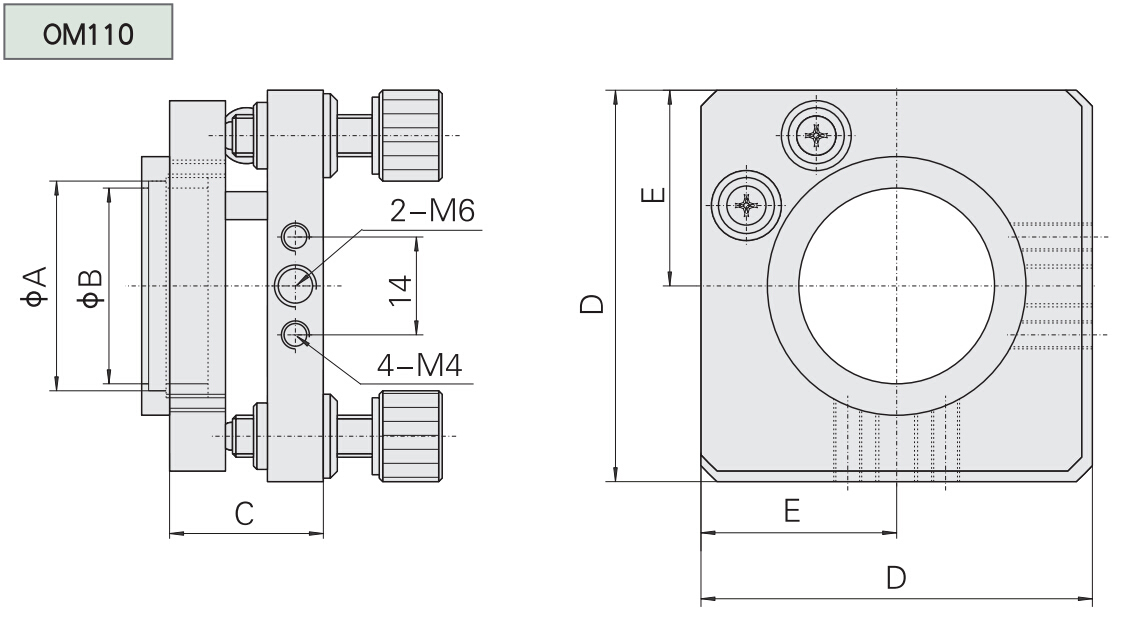

ΦA Applied diameter

15

20

25

25.4

30

40

50

60

76.2

B

13

18

23

23

28

38

47

58

74

C

22

22

22

22

22

28

28

30

30

D

56

56

56

56

56

70

70

99

99

E

28

28

28

28

28

36

36

54

54

Adjustment range

±2.5°

Weight（kg）

0.15

0.15

0.15

0.15

0.15

0.20

0.20

0.25

0.26
